Primitives

Tip

Mode:

Object Mode and Edit Mode

Menu:

Add ‣ Mesh

Shortcut:

Shift-A

Batoms comes with a number of “primitive” materials that you can start modeling from. You can add primitives in both Object and Edit Mode at the 3D cursor.

../_images/modeling_primitives_partiion.png

Batoms’s standard primitives.

Note

A simple primitive is often used as a starting point to create even the most complex of materials.

Parameters adjustment

All the parameters can be specified in the Adjust Last Operation panel, which appears when the object is created. The parameters for each primitive will be introduced below.

Molecule

The molecule is the simplest Batoms object, which is composed of atoms only. It does not has a unit cell (all zeros). It does not have periodic boundary condition in three-dimensional. Formula from the G2-database of common molecules can be used.

../_images/ops_batoms_molecule_add.png

Batoms’s molecule_add.

Note

More complicated molecules may be obtained using the PubChem API integration.

Bulk

A standard bulk object is composed of atoms, unit cell and periodic boundary condition in three-dimensional. The supported crystal structures are: sc, fcc, bcc, tetragonal, bct, hcp, rhombohedral, orthorhombic, mcl, diamond, zincblende, rocksalt, cesiumchloride, fluorite or wurtzite.

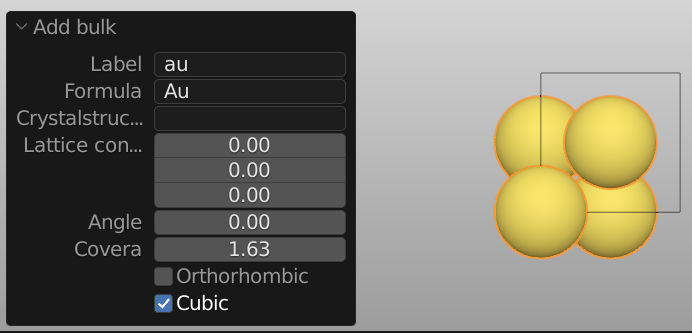

../_images/ops_batoms_bulk_add.png

Batoms’s bulk_add.

Note

More complicated crystals may be obtained using the MaterialsProject API integration.

Surface

A standard surface object is composed of atoms, unit cell, periodic boundary condition in two-dimensional and a vacuum layer in one dimensional. The supported surface structures are:

  • FCC: fcc100, fcc110, fcc111, fcc211, fcc111_root

  • BCC: bcc100, bcc110, bcc111, bcc111_root

  • HCP: hcp0001, hcp10m10, hcp0001_root

  • Diamond: diamond100, diamond111

../_images/ops_batoms_surface_add.png

Batoms’s fcc111_add.

Nanotube

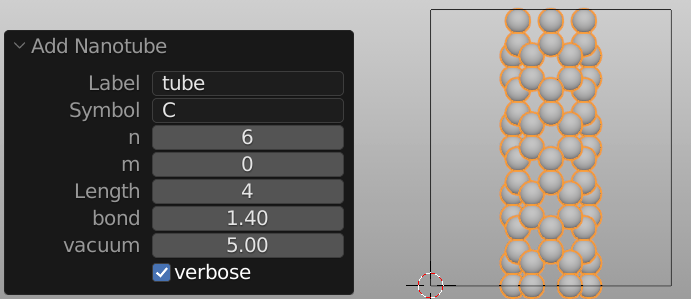

../_images/ops_batoms_nanotube_add.png

Batoms’s nanotube_add.

Nanoribbon

Graphene ribbon.

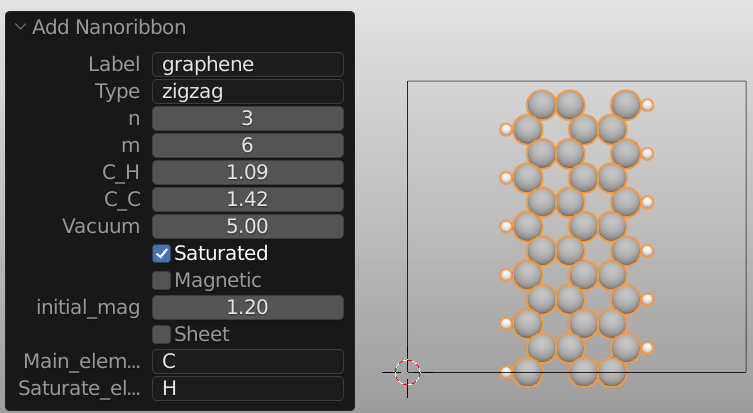

../_images/ops_nano_nanoribbon_add.png

Batoms’s nanoribbon_add.

Nanoparticle

Nanoparticle: Decahedron, Icosahedron and Octahedron.

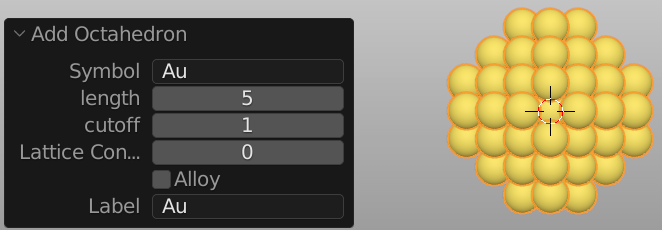

../_images/ops_nano_octahedron_add.png

Batoms’s ops_nano_octahedron_add.
